PneuGelSight: Soft Robotic Vision-Based Proprioception and Tactile Sensing

Ruohan Zhang, Uksang Yoo, Yichen Li, Arpit Argawal, Wenzhen Yuan
University of Illinois, Urbana-Champaign
The International Journal of Robotics Research, 2025
Paper Design and Simulation Files arXiv

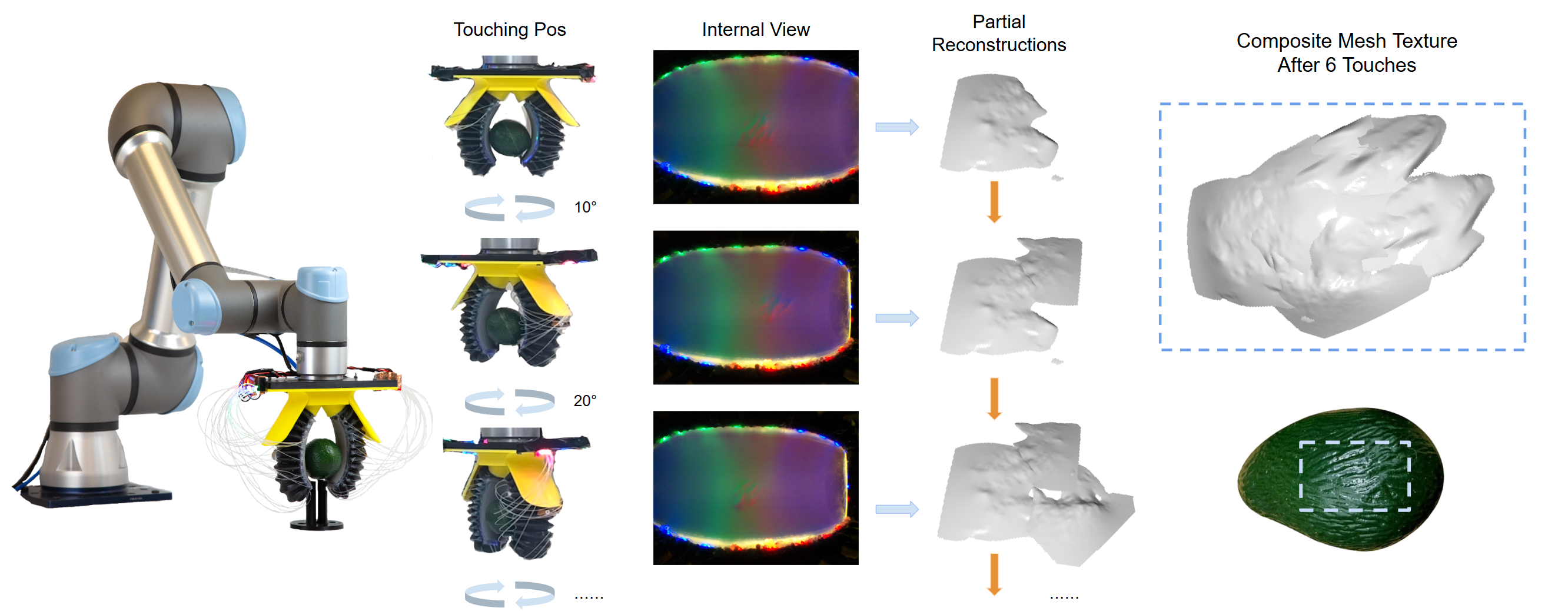

PneuGelSight in action: a soft pneumatic manipulator equipped with high-resolution vision-based tactile sensing. The embedded camera reconstructs contact geometry in real time, enabling delicate and intelligent interaction with the physical world.

Abstract

Soft pneumatic robot manipulators are popular in industrial and human-interactive applications due to their compliance and flexibility. However, deploying them in real-world scenarios requires advanced sensing for tactile feedback and proprioception. Our work presents a novel vision-based approach for sensorizing soft robots. We demonstrate our approach on PneuGelSight, a pioneering pneumatic manipulator featuring high-resolution proprioception and tactile sensing via an embedded camera. To optimize the sensor's performance, we introduce a comprehensive pipeline that accurately simulates its optical and dynamic properties, facilitating a zero-shot knowledge transition from simulation to real-world applications. PneuGelSight and our sim-to-real pipeline provide a novel, easily implementable, and robust sensing methodology for soft robots, paving the way for the development of more advanced soft robots with enhanced sensory capabilities.

2025 ICRA Keynote Talk

Paper

BibTeX

@misc{zhang2025pneugelsightsoftroboticvisionbased,
      title={PneuGelSight: Soft Robotic Vision-Based Proprioception and Tactile Sensing},
      author={Ruohan Zhang and Uksang Yoo and Yichen Li and Arpit Argawal and Wenzhen Yuan},
      year={2025},
      eprint={2508.18443},
      archivePrefix={arXiv},
      primaryClass={cs.RO},
      url={https://arxiv.org/abs/2508.18443},
}
